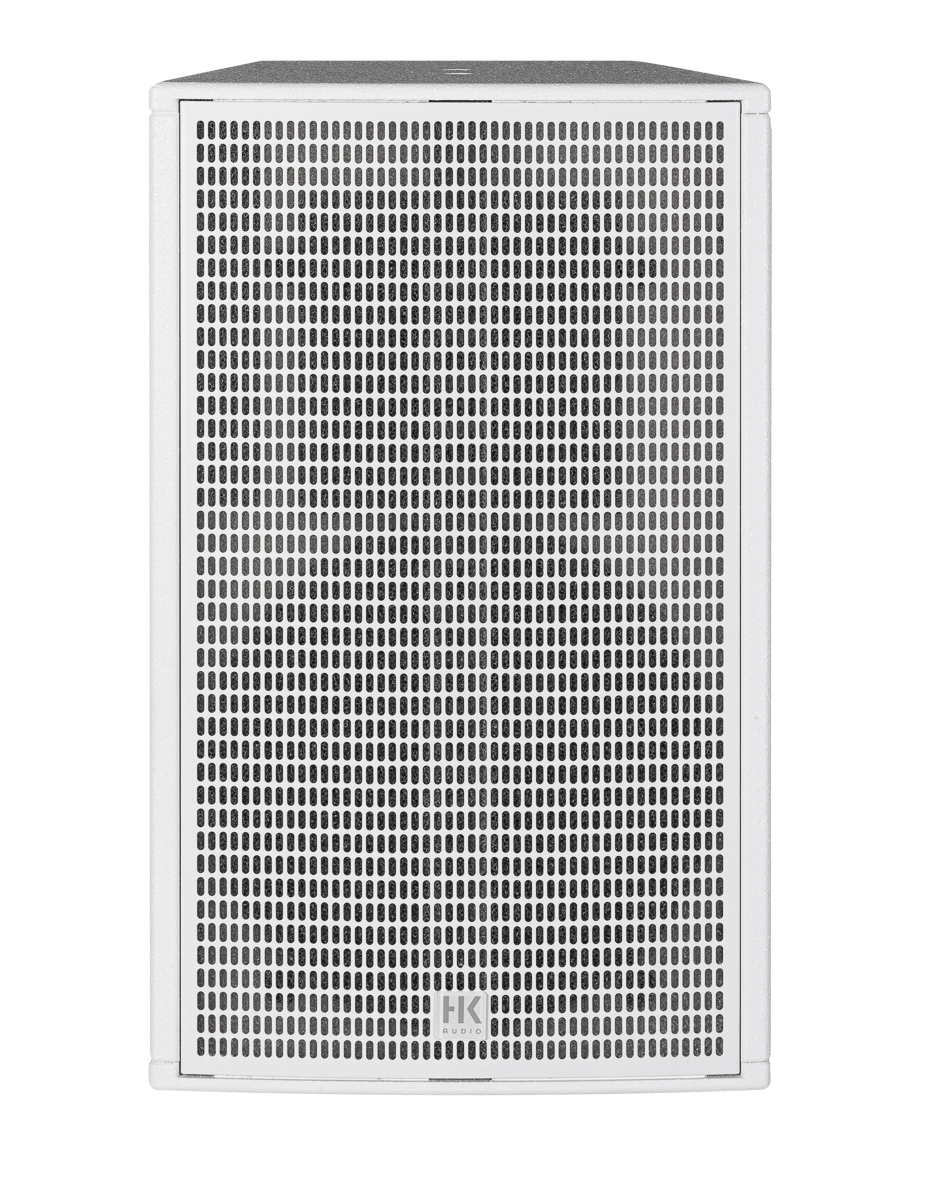

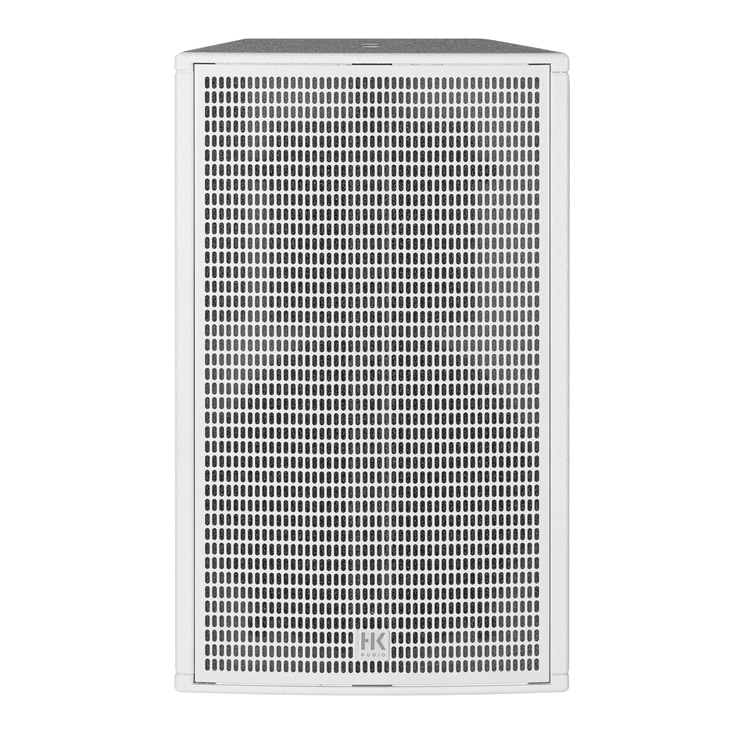

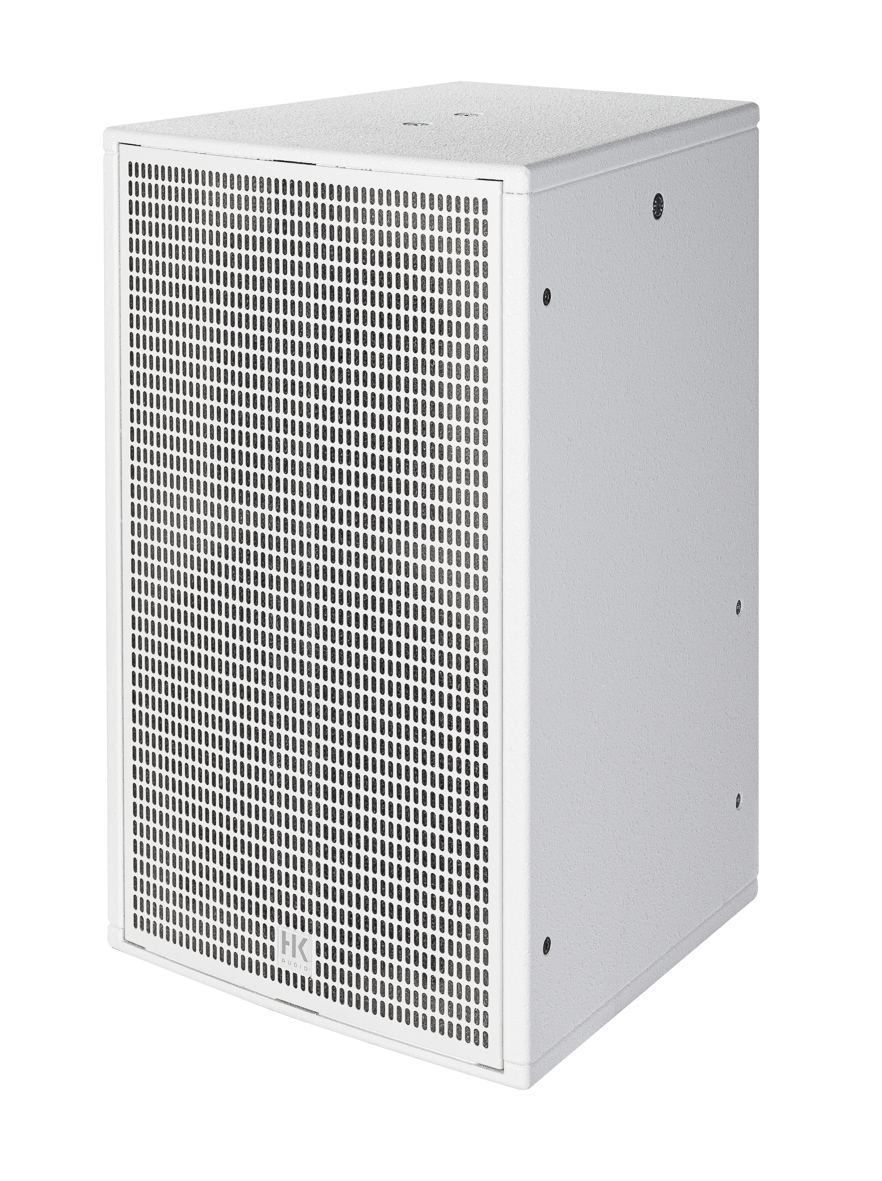

FINEO FO 10

If you’re looking for compact dimensions and balanced sound with crystal-clear HF and expressiveness in the mid and lower frequency ranges without compromise, the FO 10 is a perfect choice.

The combination of a 10" woofer with a 1.75" voice coil and the rotatable constant directivity horn from the CONTOUR X series, which was developed for the rough and tumble of touring, with a powerful 1" compression driver, results in an assertive full-range solution for speech and music. With a dispersion angle of 80° x 60°, the horn can be rotated by 90°, allowing the speaker to be used upright, lying on its side or suspended on its side with optimum dispersion in any situation.

The FO 10 is an assertive system speaker that works perfectly with the S118 or S218 subwoofers, delivering rich and precise mids.

• Compact, passive 2-way speaker
• Support for Lab.Gruppen IPX and LEA Professional with DSP Presets and other DSP platforms with Filter Sheets in open table format
• Rotatable, BEM-optimized constant-directivity HF of the latest generation from the CONTOUR X family
• All-new passive crossovers with self-healing HF protection circuit for maximum operational reliability in fixed installations
• Swivel and tilt wall bracket allows space-saving and visually appealing installation with precise alignment options at the same time
• Matching U-brackets allow for flown installation on ceilings, with the brackets allowing for precise angle adjustments

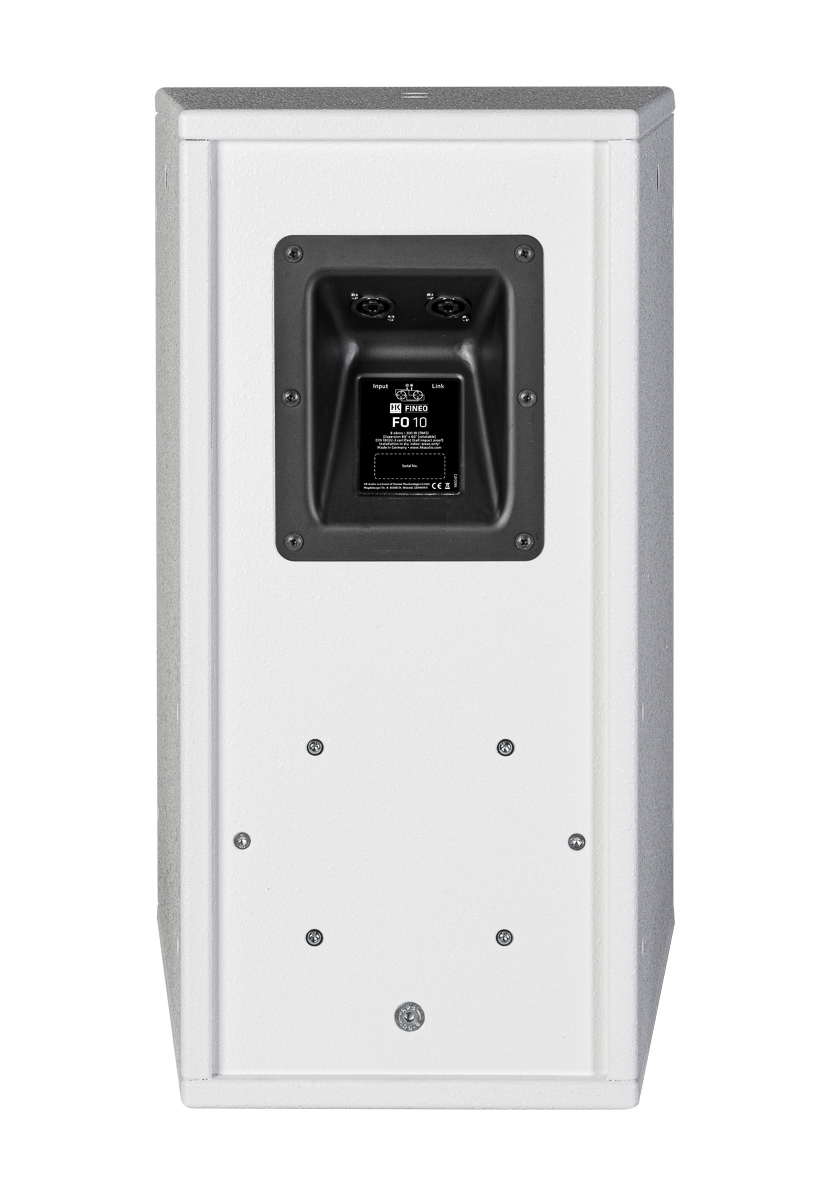

• Hole pattern on the back in the internationally standardised VESA format for attaching additional mounting accessories required for the particular application
• An external 35 mm stand flange can be attached so that the new FINEO speakers can be fitted to existing installations with appropriate wall brackets
• Extremely solid cabinets in acoustically beneficial MDF and foam-backed grille with additional steel reinforcements
• Standard design with 2 lockable Neutrik Speakon sockets
• Strongly constructed internal steel braces and mountings for the rigging and fixing points as standard, guaranteeing a secure fixed installation in compliance with strict German and European standards
• Simulation data for EASE and EASE FOCUS for predicting sound distribution and speech intelligibility as planning support for larger projects
• Certified ball-impact resistant in line with DIN 18032-3

FINEO FO 10 U-bracket

FO 10 U-bracket made of high-strength powder-coated steel for fixed installation of an FO 10. Simple installation on the top and bottom of the cabinet by hanging it into hook openings. Adjustable tilt in 15° increments. Ball-impact resistance certificate in line with DIN 18032-3.

Swivel and tilt wall mount S (VESA MIS-D)

Swivel and tilt bracket for mounting a speaker on a wall. Continuous horizontal rotation and vertical tilt in 10° increments from 0° to 30°. Mounted using the VESA hole pattern (MIS-D) on the back of the speaker.

SF-35

External 35 mm flange for use on a standard 35 mm speaker stand. Simple screw connection to the underside of the speaker. Easy-to-use locking screw to lock the speaker to the stand without tools.

BWH-1

Wall bracket with adjustable 30 cm arm and backstop for mounting a speaker on a wall. This allows for flexible speaker placement on the wall bracket. The arm can be rotated up to 120° and tilted 45°.

AP-8

Attachment points with unscrewing protection for mounting on a ceiling or crossbeam. Simple attachment to the M8 mounting threads. Available in sets of 3 or 4 AP-8s as well as individually.
